Stainless steel sit on sink and unit kitchen cabinet. White Gloss 800mm kitchen base sink cabinet with a reversible stainless steel sink. Sink is directly mounted on the unit in sit on lay on style. This kitchen sink base unit features 2 doors, partial back for ease of plumbing, soft close system and adjustable legs.

Under sink cabinet comes in combination of light grey matt body and white high gloss fronts from modern Ella kitchen furniture range.

The compact freestanding 800mm sink cabinet is designed to house the stainless steel reversible sink efficiently, maximizing washing space without the need for a worktop.

Affordable and functional, this unit allows you to create a sleek, budget-friendly kitchen design with ease.

Dimensions:
Unit Size: 87 cm (H); 80cm (W); 46.3cm (D).
Sink Size: 3.2cm (H) x 80cm (W) x 60cm (D)
Overall depth of unit with the sink installed is 60cm.
Overall width of unit with the sink installed is 80cm.
Overall heigh of unit with the sink installed is 90.2cm.
Total Product Weight: 30.45kg

Features:

• Complete 800mm kitchen sink cabinet with sit on stainless steel sink
• Freestanding kitchen sink unit with sit on sink
• Under sink unit depth 47cm and sink depth is 60cm, total depth 60cm when both installed
• Service gap 11cm left between the wall and the back of the unit
• Half open back to allow for plumbing
• Universal fitting sink can be fitted as left or right hand
• Waste kit and plug included with the sink
• Sink is made of stainless steel and does not have a tap hole.
• White Gloss 16mm MDF Slab Front with bevelled edges
• Light Grey Matt 16mm MFC Body of units
• Chrome metal handles included
• Soft close mechanism in all units
• Adjustable legs with 15cm tall plinths
• Quality German accessories from Hettich and Hafele
• Matching additional kitchen units are available

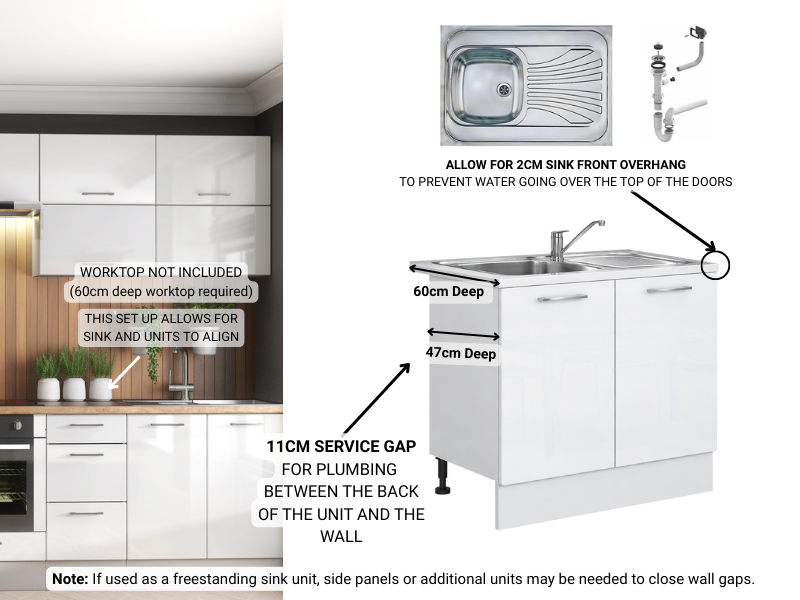

Installation Tip:
Unit depth is 47cm and sink depth is 60cm – designed to leave a service gap at the back of the unit. Unit needs to be moved away from the wall by 11cm. This allows for 2cm overhang of the sink at the front. Overhang prevents water splashing on the fronts and leaves 11cm service gap at the back.

Single Bowl Sit Lay On Kitchen Sink 800 x 600mm Features:
Sink Size: 3.2cm (H) x 80cm (W) x 60cm (D)
Type: sit on sink – sink goes directly on the top of the 800mm sink unit without worktop
Description: single bowl single drainer
Material: 304 Austenitic 18/10 Stainless Steel
Outside Measurements: W 800mm; D 600mm.

Measurements of the bowl: W 340mm;L 370mm; D 130mmWaste cap supplied.

No tap hole – this can be cut out by customer according to requirements
Sink is reversible and can be mounted left or right handed
Includes complete waste kit and traditional plug hole

Stainless Steel single sit on sink with roll top is suitable for 800mm (80cm) wide under sink unit and is made of premium 18/10 stainless steel material. Satin matt steel surface finish. The front edge of the sink has square roll front and measures 28mm in height and therefore suited to be fitted alongside the standard worktops of 28-30mm thickness.

Please note: The Four screws to affix sink are NOT included. Timber frame construction needs to be inserted into the steel sink frame – timber not supplied

Assembly Instructions for the Sink: https://www.youtube.com/watch?v=ERViMhKuJRE

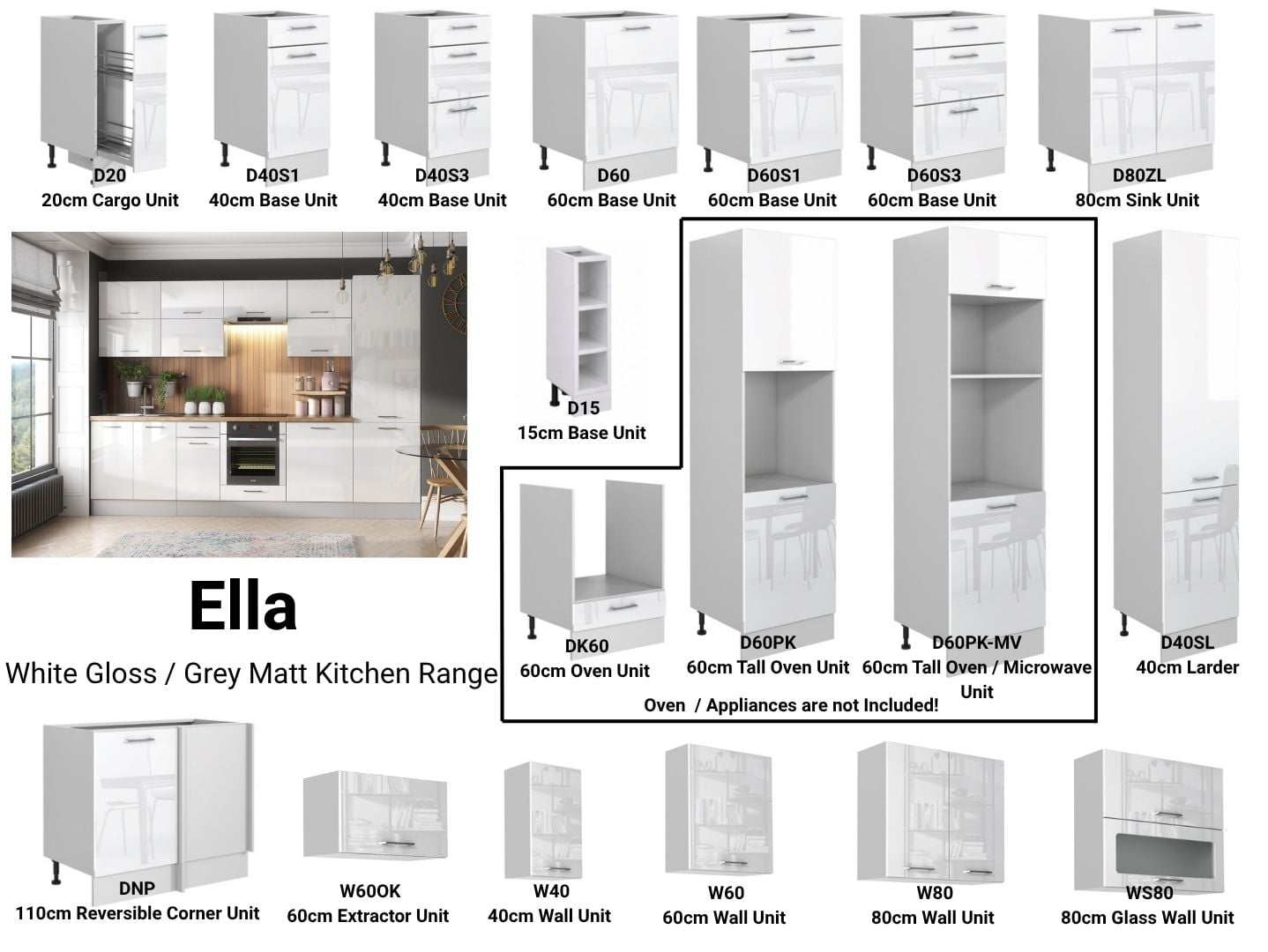

Our modular kitchen units are available to purchase as individual freestanding kitchen cabinets or as a freestanding kitchen units set.
All fixings (apart from wall plugs and sink fixings) are included along with clear and user-friendly assembly instructions.
Furniture comes flat packed and ready for home assembly.
